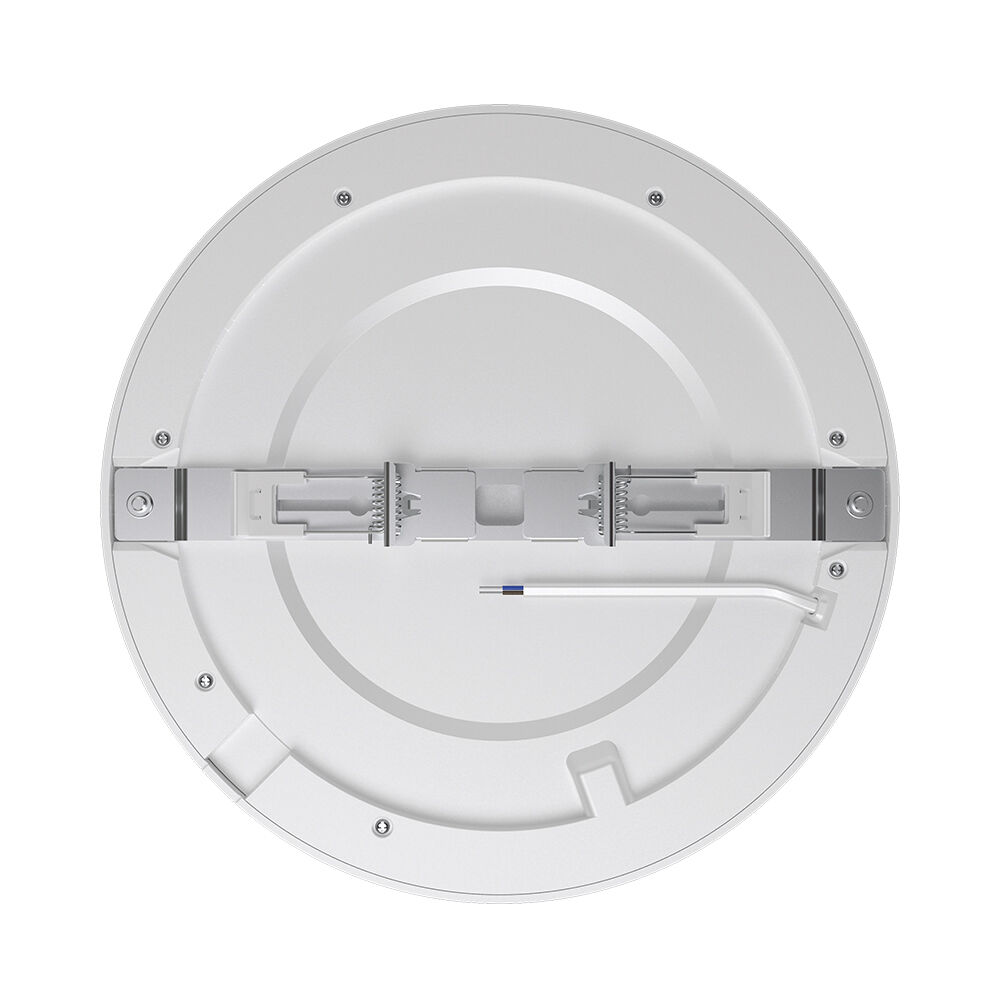

BRY-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL

BP03-92080

BRY-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL - 1

BRY-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL - 2

BRY-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL - 3

BRY-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL - 4

BRY-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL - 5

BRY-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL - 6

BRY-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL - 7

BRY-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL - 8

Family Products

General Characteristics

Model No

BP03-92080

Main Family

Indoor Lighting

Sub Family

LED Small Panel

Type

Recessed Panel

Body Color

White

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 years

Class

Class II

IP

IP20

Product Characteristics

Wattage

20 w

Color Temperature

3IN1

Quse Lumen

1800 lm

Color Rendering Index (CRI)

>80

Energy Efficiency Level

F

Beam Angle

110° Degrees

Color Category

3IN1

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

PC

Working Temperature

-20 C+40 C

Frequency

50-60 Hz

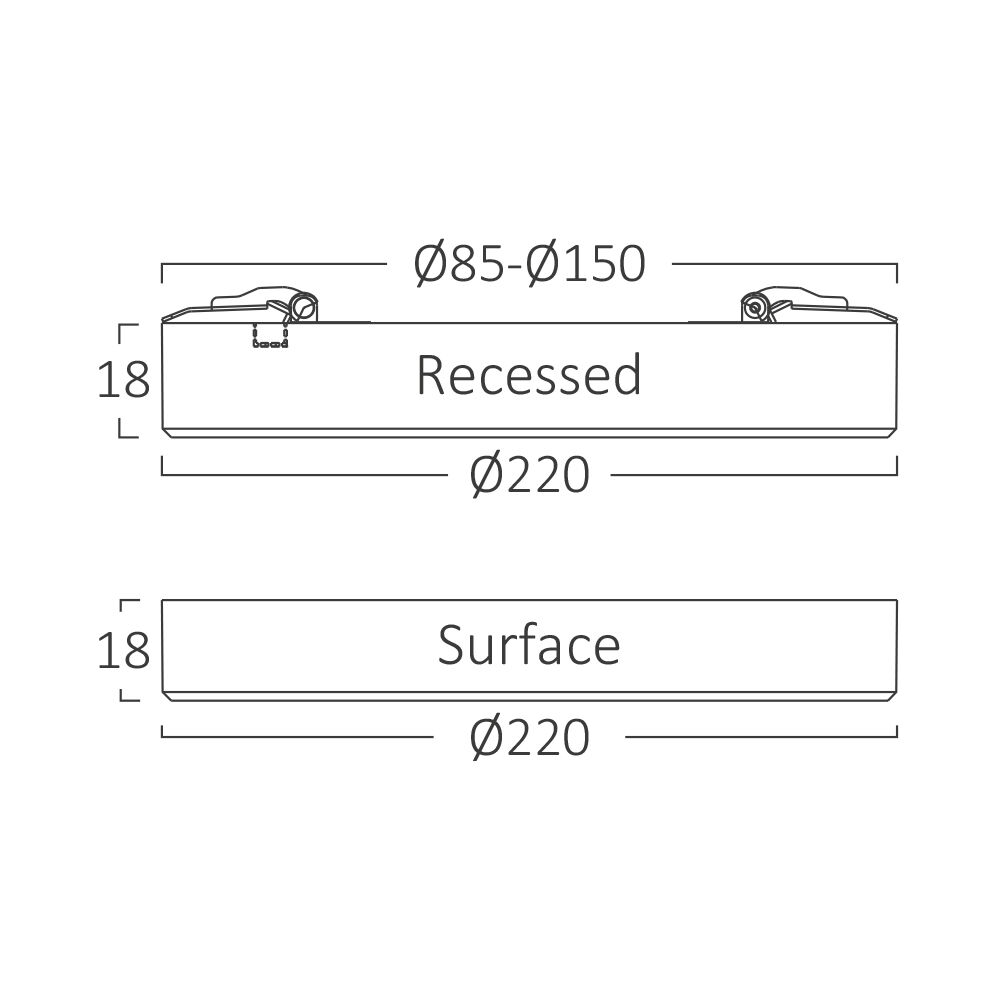

Dimensions & Weight

Diameter

220 mm

P. Height

18 mm

Cutout

85-150 mm

Weight

380 gr

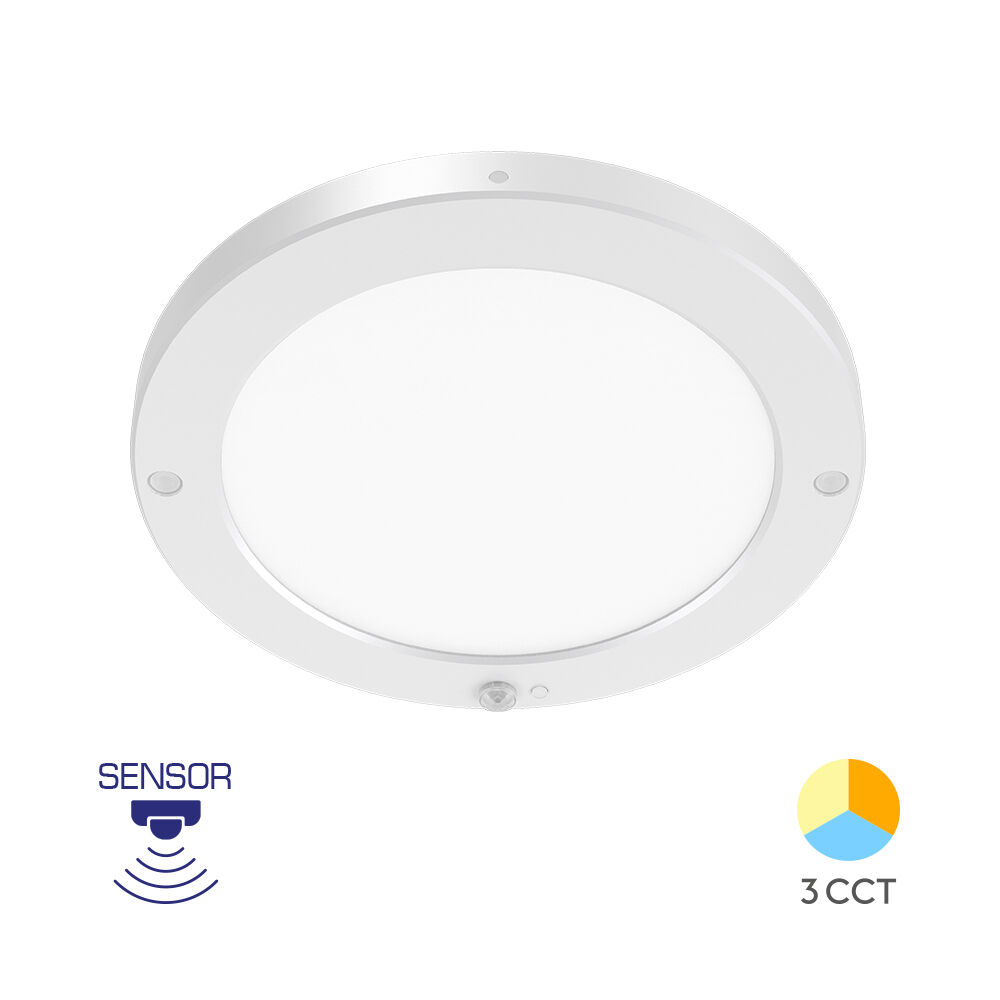

Sensor Informations

Sensor Type

Motion

Detection Distance

3m-8m

Detection Angle

90° Degrees-360° Degrees

Installation Height

2m-4 m

Lux

1500 lux

Package Informations

N.W.

7,60 kgs

G.W.

10,05 kgs

PCS/CTN

20 pcs

Length

465 mm

Width

330 mm

Height

270 mm

EAN

5949097734441

1-CE-CERTIFICATE 1-EC-DECLERATION 1-EMC-TEST 1-LVD-TEST

BP03-92080 DATASHEET
