BRY-SMD-SRP-24W-RND-WHT-3IN1-LED PANEL LIGHT

BP03-62480

BRY-SMD-SRP-24W-RND-WHT-3IN1-LED PANEL LIGHT - 1

BRY-SMD-SRP-24W-RND-WHT-3IN1-LED PANEL LIGHT - 2

BRY-SMD-SRP-24W-RND-WHT-3IN1-LED PANEL LIGHT - 3

BRY-SMD-SRP-24W-RND-WHT-3IN1-LED PANEL LIGHT - 4

BRY-SMD-SRP-24W-RND-WHT-3IN1-LED PANEL LIGHT - 5

BRY-SMD-SRP-24W-RND-WHT-3IN1-LED PANEL LIGHT - 6

Family Products

General Characteristics

Model No

BP03-62480

Main Family

Indoor Lighting

Sub Family

LED Small Panel

Type

Surface Frame

Body Color

White

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 years

Class

Class II

IP

IP40

Product Characteristics

Wattage

24 w

Color Temperature

3IN1

Quse Lumen

2400 lm

Color Rendering Index (CRI)

>80

Energy Efficiency Level

F

Beam Angle

120° Degrees

Color Category

3IN1

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

PC

Working Temperature

-20 C+40 C

Frequency

50-60 Hz

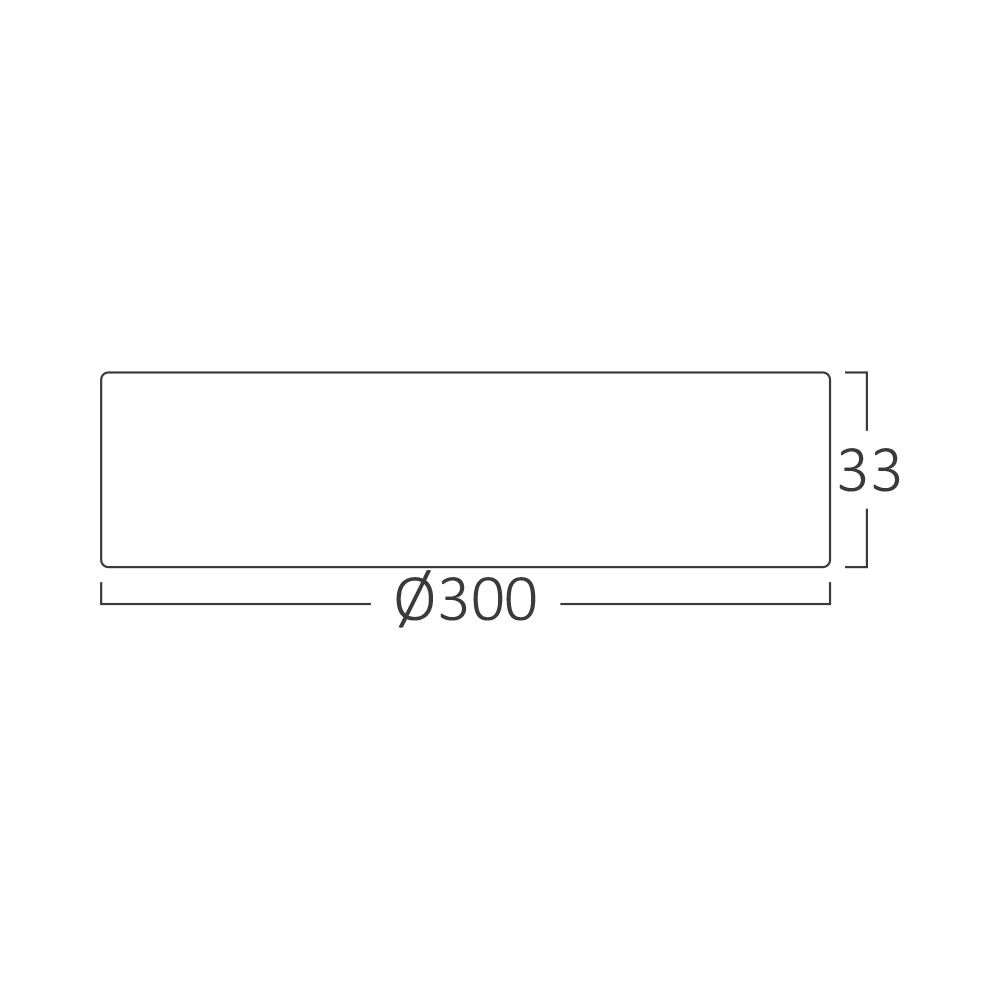

Dimensions & Weight

Diameter

300 mm

P. Height

33 mm

Weight

600 gr

Package Informations

N.W.

6,00 kgs

G.W.

7,95 kgs

PCS/CTN

10 pcs

Length

440 mm

Width

325 mm

Height

330 mm

EAN

5949097743047

1-CE-CERTIFICATE 1-EC-DECLERATION 1-EMC-TEST 1-LVD-TEST

Username:

Password:

BP03-62480 DATASHEET
