BRY-SMD-SRP-12W-SQR-WHT-6500K-LED PANEL

BP04-61230

BRY-SMD-SRP-12W-SQR-WHT-6500K-LED PANEL - 1

BRY-SMD-SRP-12W-SQR-WHT-6500K-LED PANEL - 2

BRY-SMD-SRP-12W-SQR-WHT-6500K-LED PANEL - 3

BRY-SMD-SRP-12W-SQR-WHT-6500K-LED PANEL - 4

BRY-SMD-SRP-12W-SQR-WHT-6500K-LED PANEL - 5

BRY-SMD-SRP-12W-SQR-WHT-6500K-LED PANEL - 6

BRY-SMD-SRP-12W-SQR-WHT-6500K-LED PANEL - 7

Family Products

General Characteristics

Model No

BP04-61230

Main Family

Indoor Lighting

Sub Family

LED Small Panel

Type

Surface Frame

Body Color

White

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 years

Class

Class II

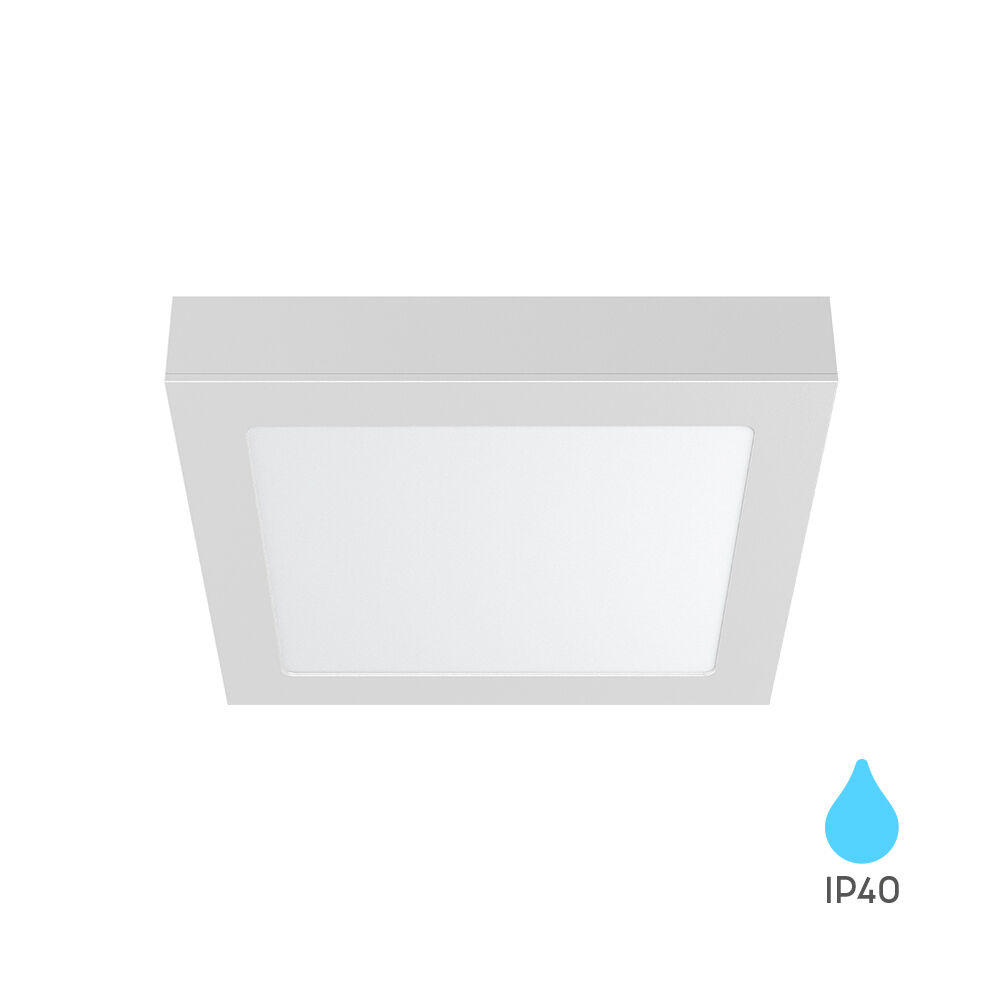

IP

IP40

Product Characteristics

Wattage

12 w

Color Temperature

6500K

Quse Lumen

1120 lm

Color Rendering Index (CRI)

>80

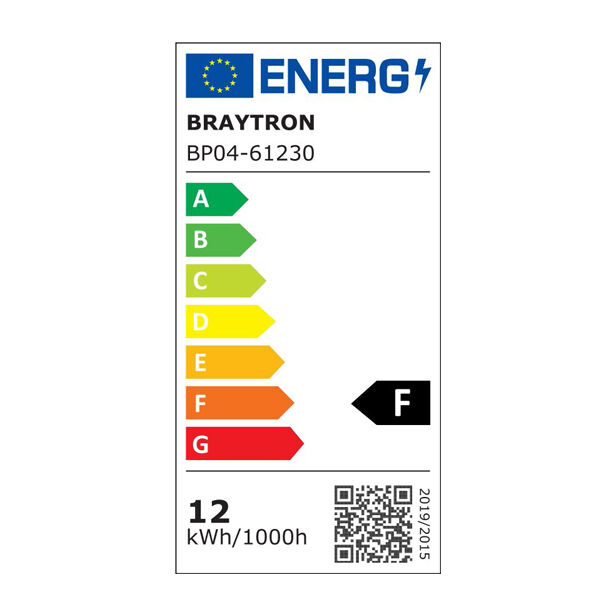

Energy Efficiency Level

F

Beam Angle

120° Degrees

Color Category

Cool White

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

PC

Working Temperature

-20 C+40 C

Frequency

50-60 Hz

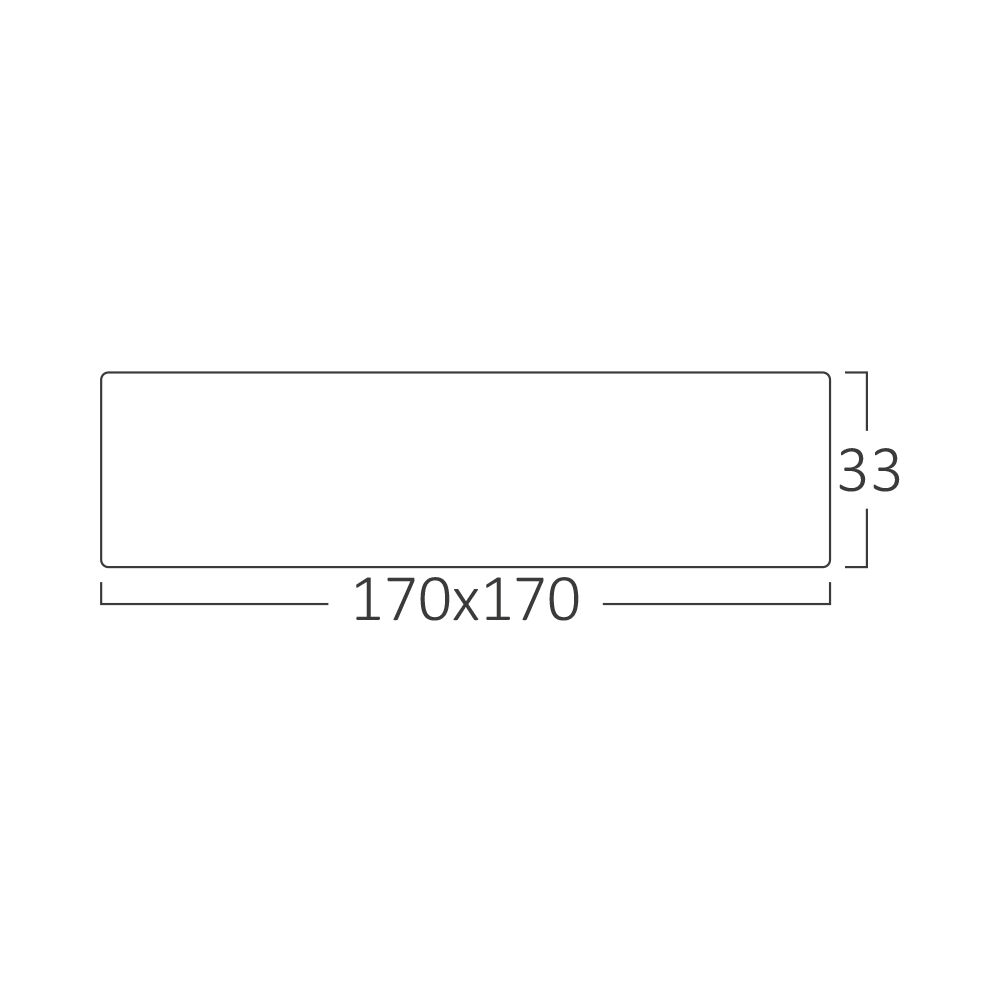

Dimensions & Weight

P. Length

170 mm

P. Width

170 mm

P. Height

33 mm

Weight

270 gr

Package Informations

N.W.

5,60 kgs

G.W.

7,40 kgs

PCS/CTN

20 pcs

Length

435 mm

Width

375 mm

Height

205 mm

EAN

5949097712319

1-CE-CERTIFICATE 1-EC-DECLERATION 1-EMC-TEST 1-LVD-TEST
