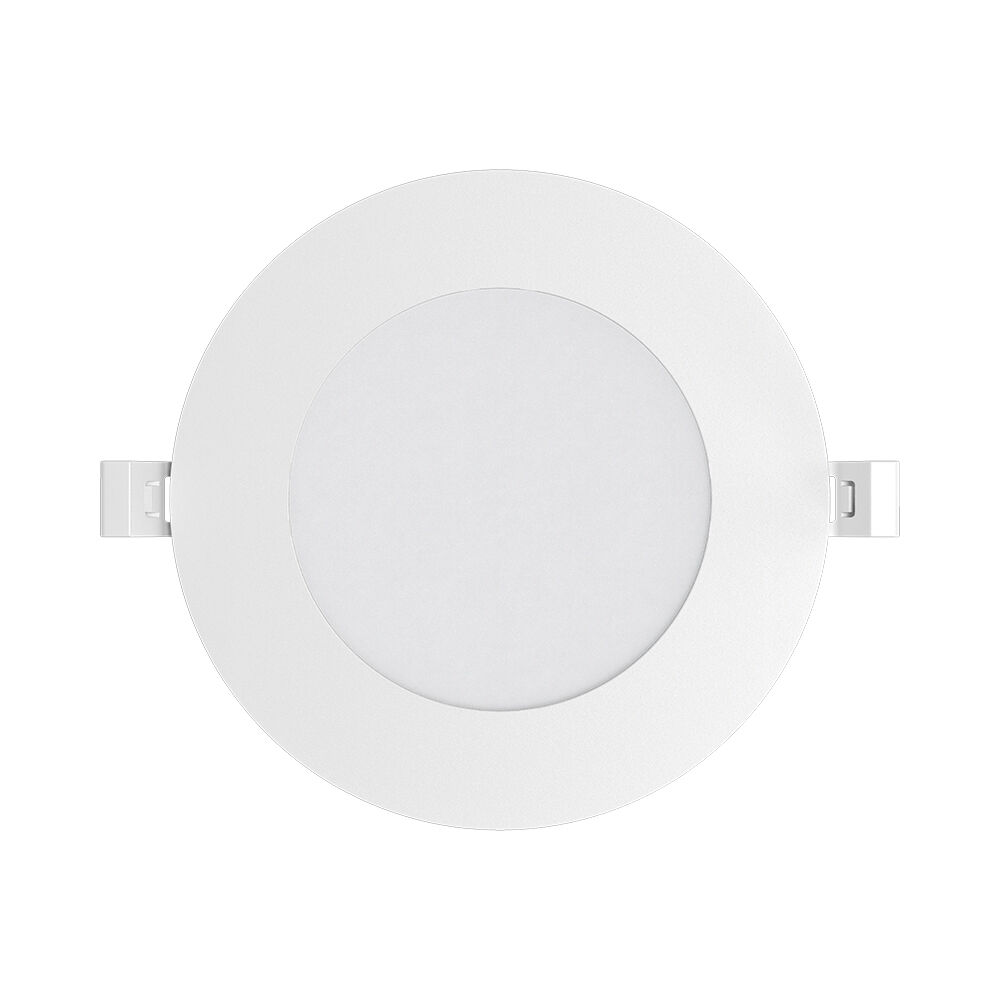

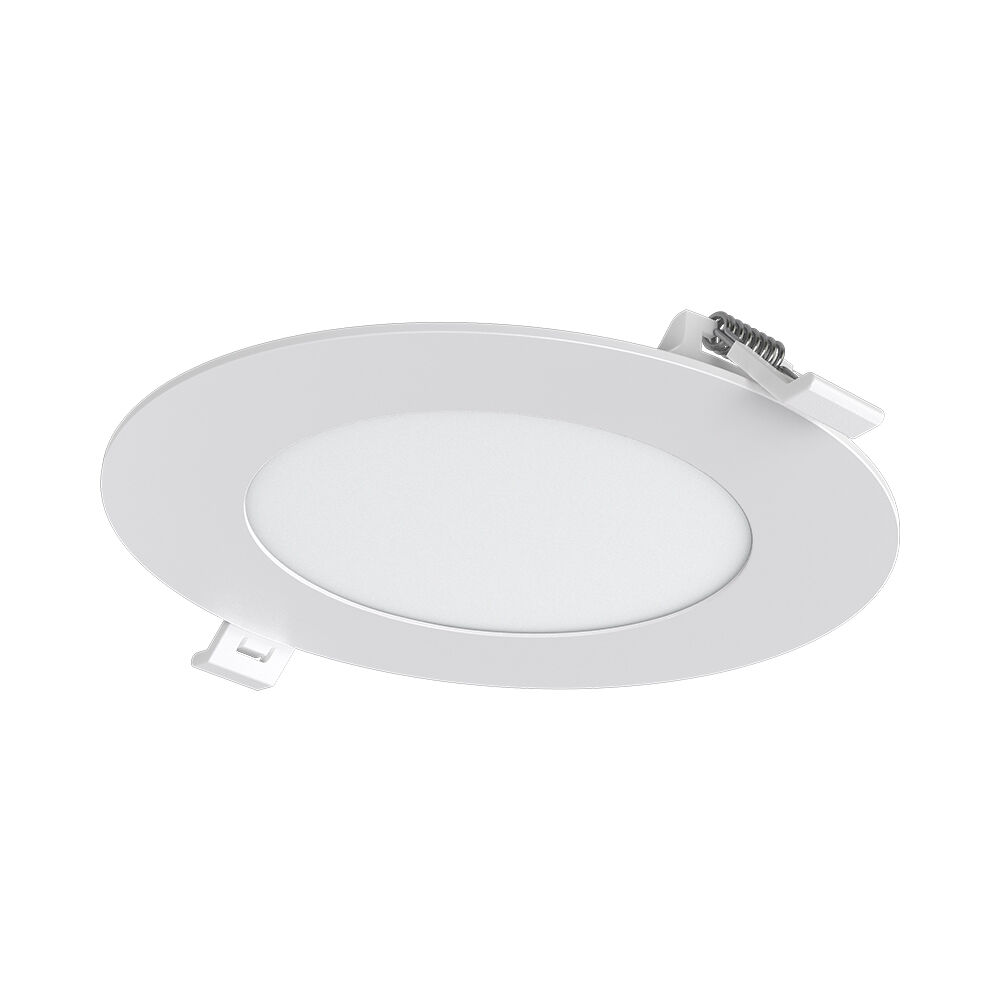

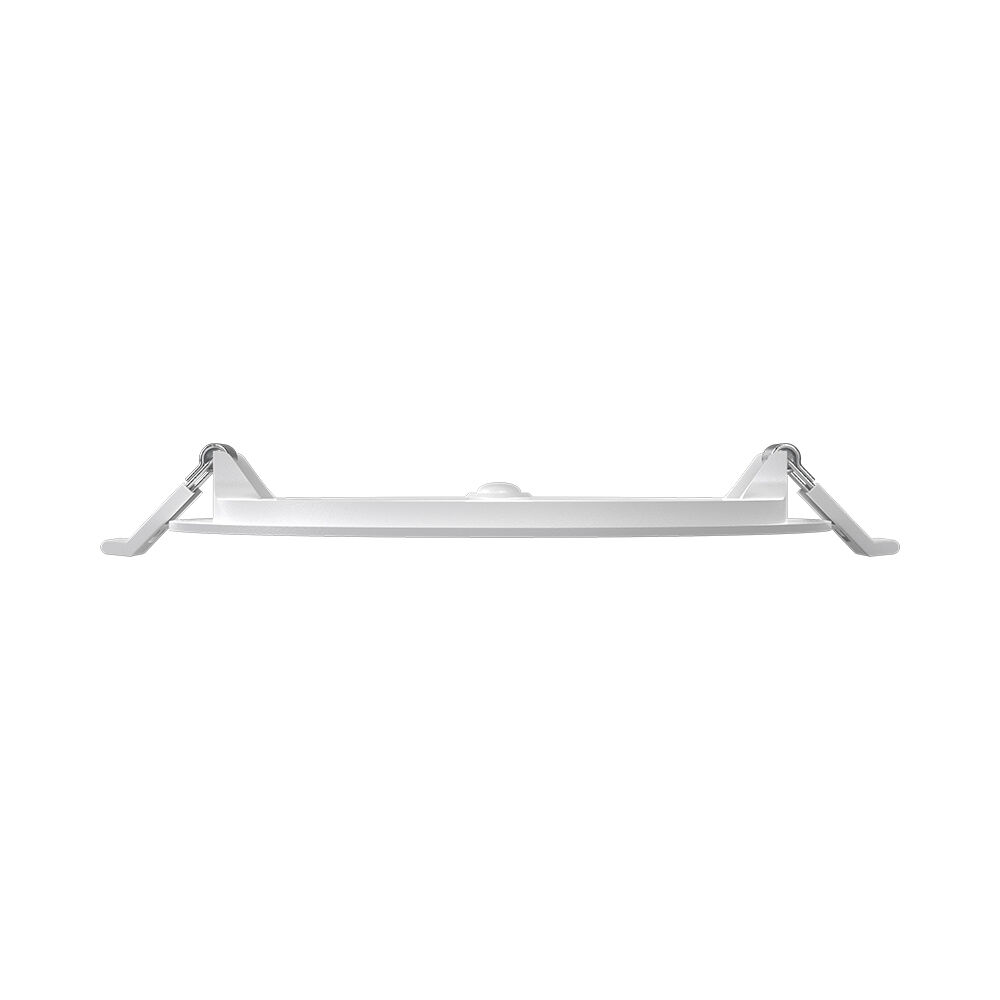

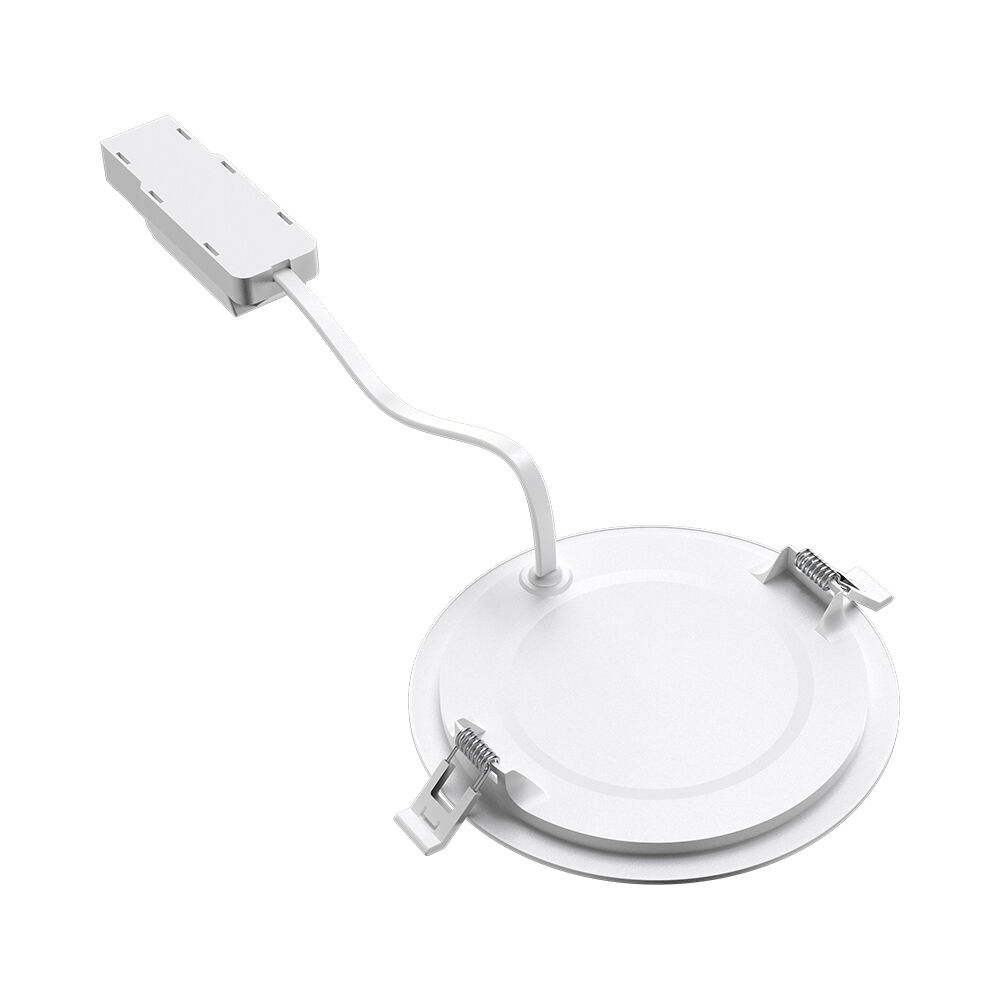

BRY-SMD-CRP-6W-RND-4NC-WHT-3IN1-LED PANEL LIGHT

BP01-60680

BRY-SMD-CRP-6W-RND-4NC-WHT-3IN1-LED PANEL LIGHT - 1

BRY-SMD-CRP-6W-RND-4NC-WHT-3IN1-LED PANEL LIGHT - 2

BRY-SMD-CRP-6W-RND-4NC-WHT-3IN1-LED PANEL LIGHT - 3

BRY-SMD-CRP-6W-RND-4NC-WHT-3IN1-LED PANEL LIGHT - 4

BRY-SMD-CRP-6W-RND-4NC-WHT-3IN1-LED PANEL LIGHT - 5

BRY-SMD-CRP-6W-RND-4NC-WHT-3IN1-LED PANEL LIGHT - 6

BRY-SMD-CRP-6W-RND-4NC-WHT-3IN1-LED PANEL LIGHT - 7

BRY-SMD-CRP-6W-RND-4NC-WHT-3IN1-LED PANEL LIGHT - 8

Family Products

General Characteristics

Model No

BP01-60680

Main Family

Indoor Lighting

Sub Family

LED Small Panel

Type

Recessed Panel

Body Color

White

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 years

Class

Class II

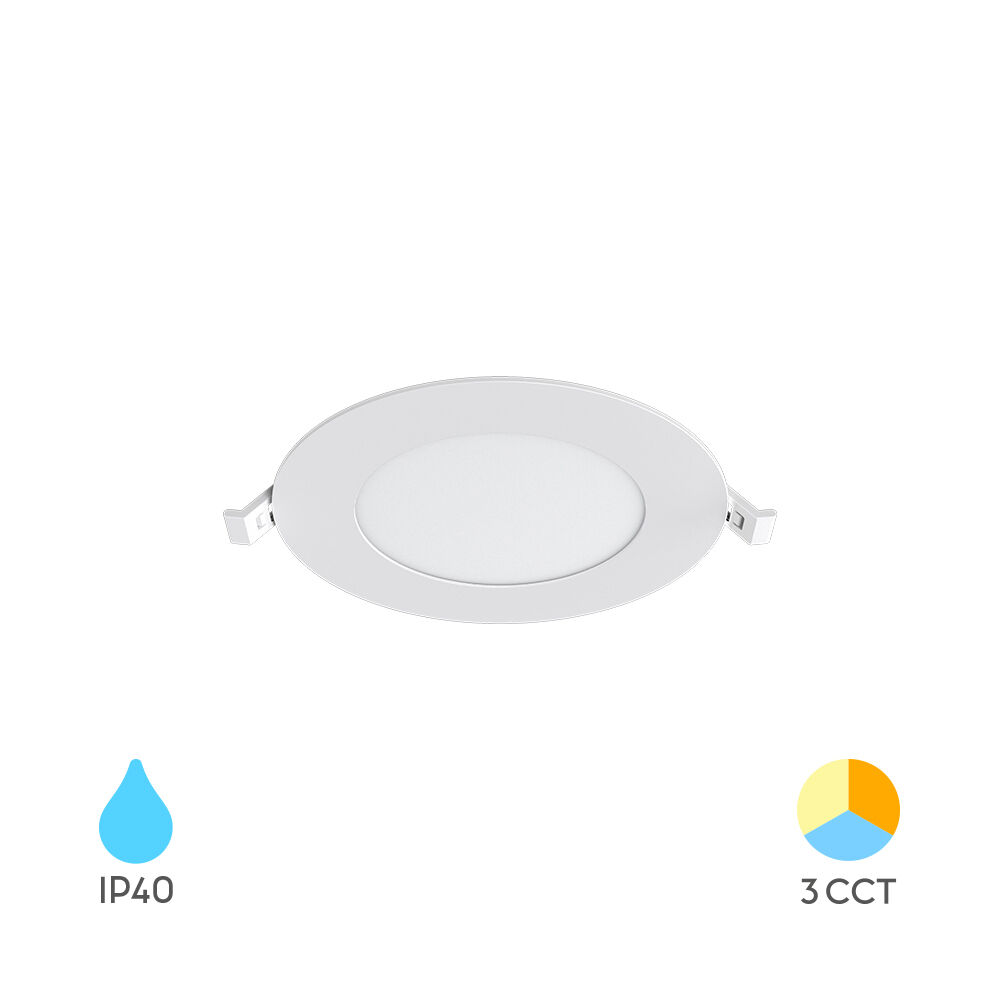

IP

IP40

Product Characteristics

Wattage

6 w

Color Temperature

3IN1

Quse Lumen

470 lm

Color Rendering Index (CRI)

>80

Energy Efficiency Level

G

Beam Angle

120° Degrees

Color Category

3IN1

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

PC

Working Temperature

-20 C+40 C

Frequency

50-60 Hz

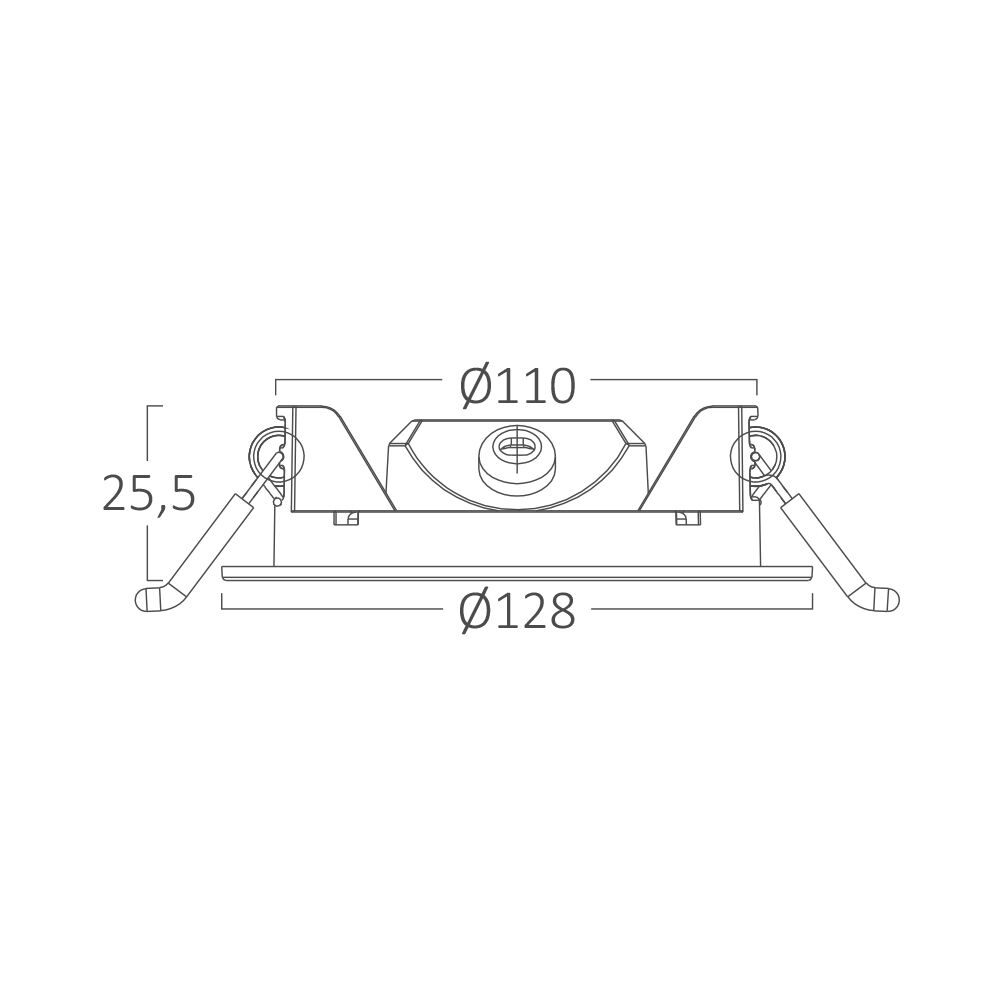

Dimensions & Weight

Diameter

128 mm

P. Height

25,5 mm

Cutout

110 mm

Weight

110 gr

Package Informations

N.W.

4,40 kgs

G.W.

6,30 kgs

PCS/CTN

40 pcs

Length

555 mm

Width

235 mm

Height

295 mm

EAN

5949097742958

1-CE-CERTIFICATE 1-EC-DECLERATION 1-EMC-TEST 1-LVD-TEST
