BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 1

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 2

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 3

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 4

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 5

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK

BD62-00211

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 1

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 2

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 3

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 4

BRY-PDT030-7W-48VDC-4000K-BLC-MAG. TRACK - 5

Family Products

General Characteristics

Model No

BD62-00211

Main Family

Track Lighting

Sub Family

LED Magnetic

Type

Track

Body Color

Black

Lamp Shape

Directional

Dimmable

Not-Dimmable

Light Source

LED

Socket

Magnetic

Warranty

3 years

Class

Class III

IP

IP20

Product Characteristics

Wattage

7 w

Color Temperature

4000K

Quse Lumen

430 lm

Color Rendering Index (CRI)

>90

Energy Efficiency Level

G

Beam Angle

24° Degrees

Color Category

Natural White

Electrical Characteristics

Lifetime

30000 h

Voltage

48VDC

Power Factor

>0,9

Material

Aluminium

Working Temperature

-20 C+40 C

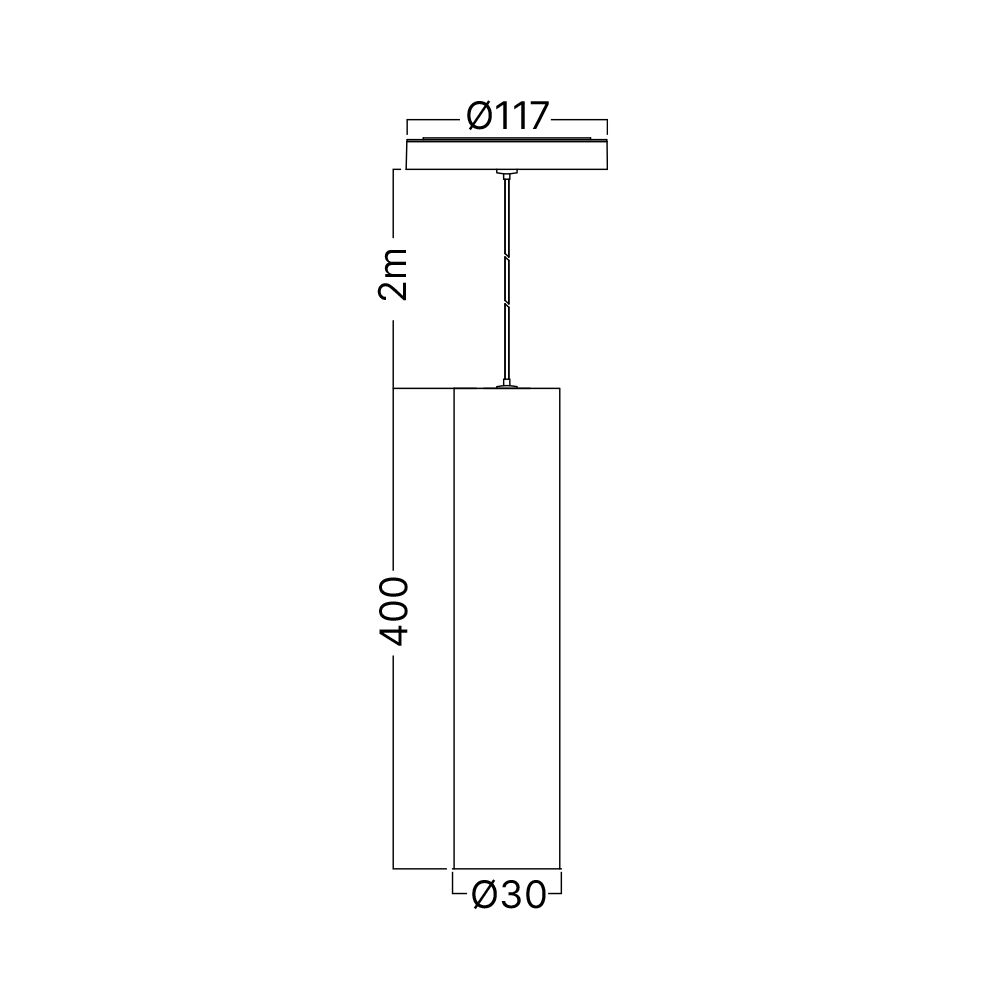

Dimensions & Weight

Diameter

117 mm

P. Height

420 mm

Weight

275 gr

Package Informations

N.W.

8,25 kgs

G.W.

9,90 kgs

PCS/CTN

30 pcs

Length

600 mm

Width

200 mm

Height

235 mm

EAN

5949097728303

17-EC-DECLARATION 17-CE-CERTIFICATE-EMC 17-CE-CERTIFICATE-LVD 17-EMC-TEST 17-LVD-TEST

BD62-00211 DATASHEET
