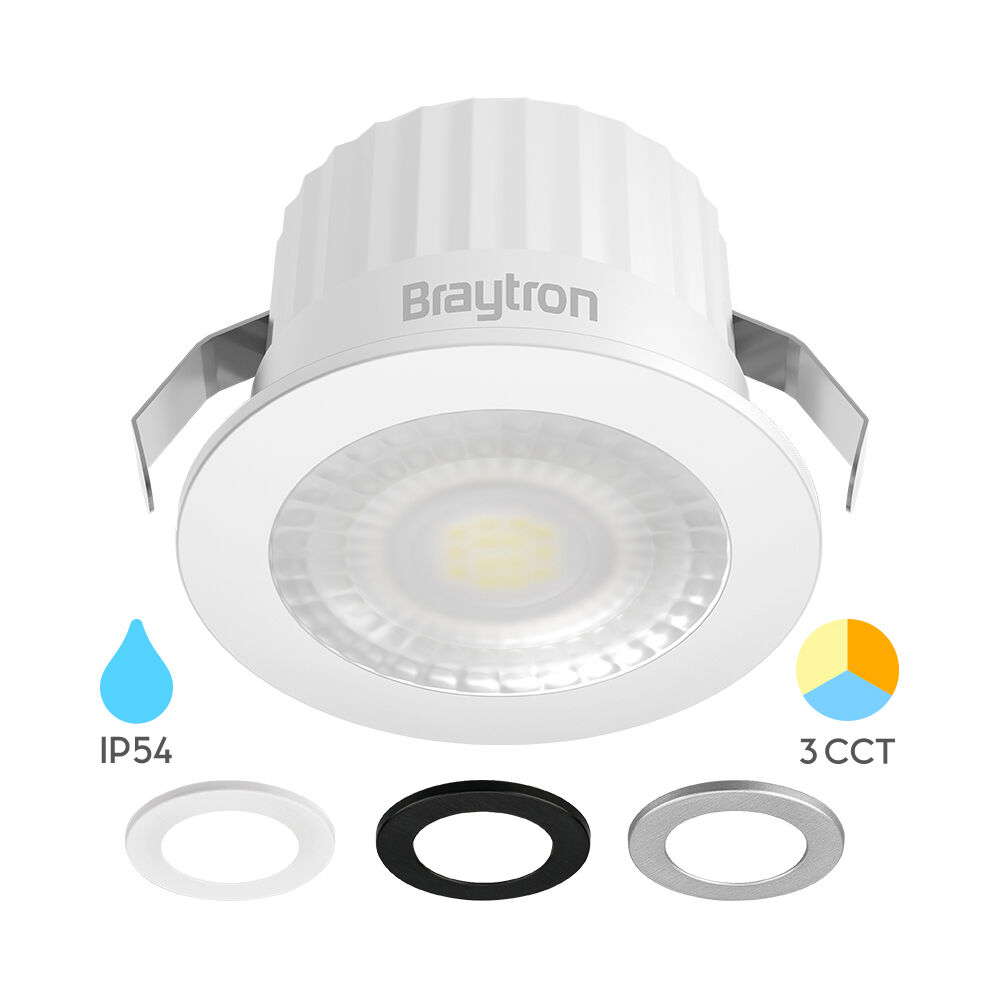

BRY-MINISPOT-A-3W-38D-3C-3IN1-IP54-LED SPOTLIGHT

BH06-00289

BRY-MINISPOT-A-3W-38D-3C-3IN1-IP54-LED SPOTLIGHT - 1

BRY-MINISPOT-A-3W-38D-3C-3IN1-IP54-LED SPOTLIGHT - 2

BRY-MINISPOT-A-3W-38D-3C-3IN1-IP54-LED SPOTLIGHT - 3

BRY-MINISPOT-A-3W-38D-3C-3IN1-IP54-LED SPOTLIGHT - 4

BRY-MINISPOT-A-3W-38D-3C-3IN1-IP54-LED SPOTLIGHT - 5

BRY-MINISPOT-A-3W-38D-3C-3IN1-IP54-LED SPOTLIGHT - 6

BRY-MINISPOT-A-3W-38D-3C-3IN1-IP54-LED SPOTLIGHT - 7

Family Products

General Characteristics

Model No

BH06-00289

Main Family

Indoor Lighting

Sub Family

LED Spotlight

Type

Spotlight

Body Color

3 Color

Lamp Shape

Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 years

Class

Class II

IP

IP54

IK

IK06

Product Characteristics

Wattage

3 w

Color Temperature

3IN1

Quse Lumen

210 lm

Color Rendering Index (CRI)

>80

Energy Efficiency Level

G

Beam Angle

38° Degrees

Color Category

3IN1

Electrical Characteristics

Lifetime (at 2.7 h/day)

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

PC

Working Temperature

-20 C+40 C

Frequency

50-60 Hz

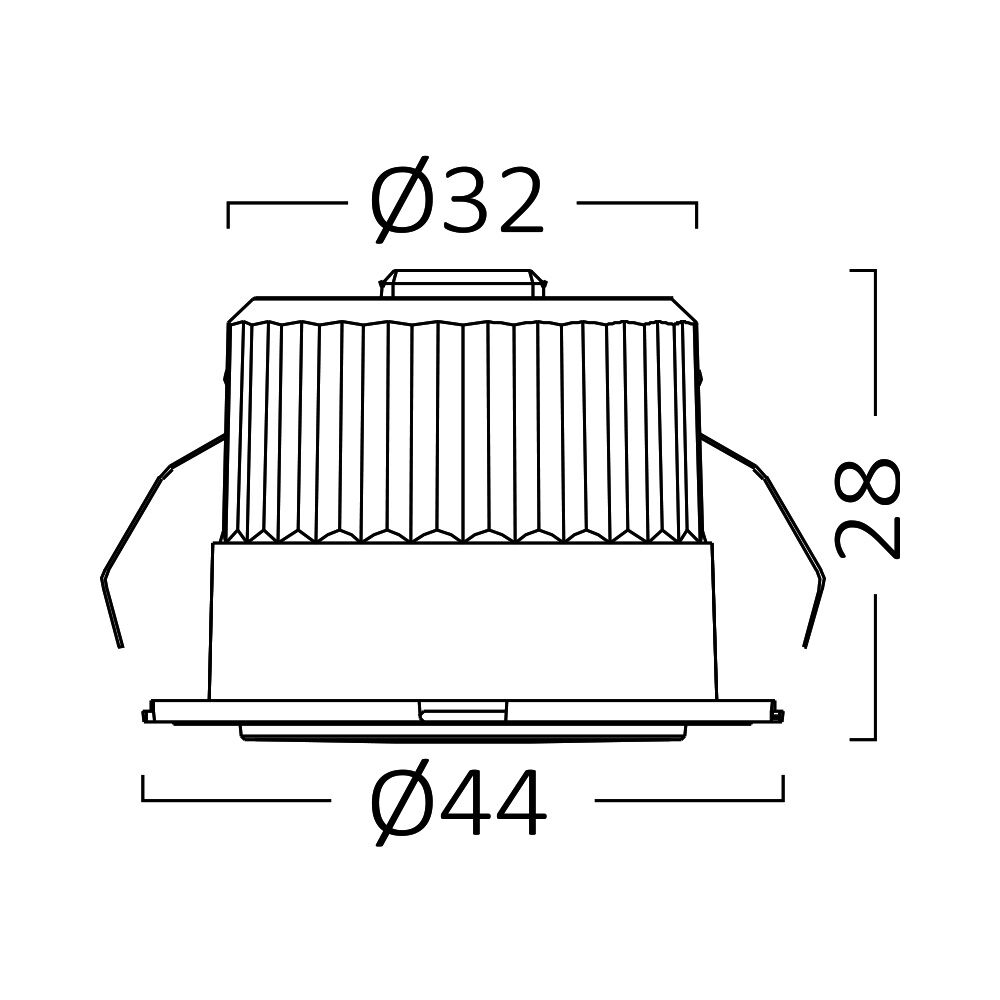

Dimensions & Weight

Diameter

44 mm

P. Height

28 mm

Cutout

32 mm

Weight

28 gr

Package Informations

N.W.

2,80 kgs

G.W.

4,30 kgs

PCS/CTN

100 pcs

Length

480 mm

Width

250 mm

Height

135 mm

EAN

5949097742927

CE-CERTIFICATE-(EMC)CE-CERITIFICATE-(LVD)EC-DECLARATION EMC-TEST-55015 LVD-TEST-EN60598-2-2

BH06-00289 DATASHEET
