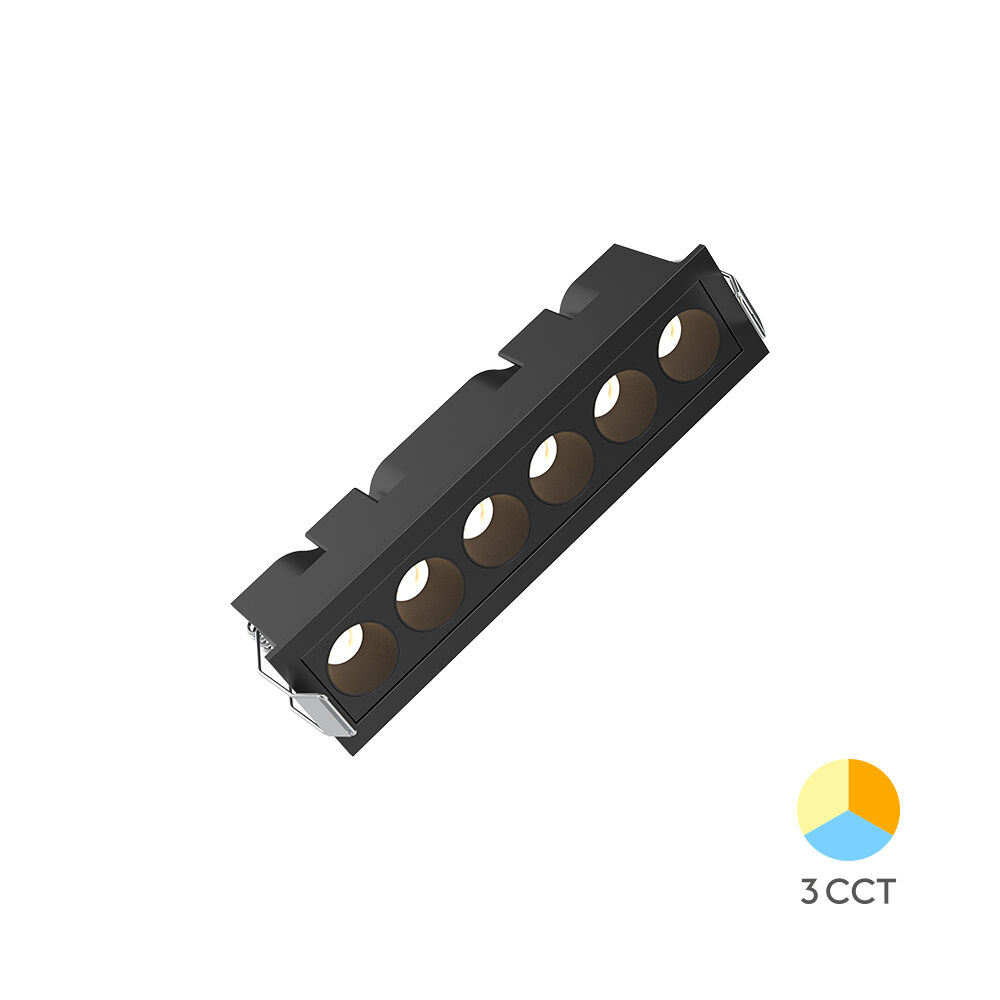

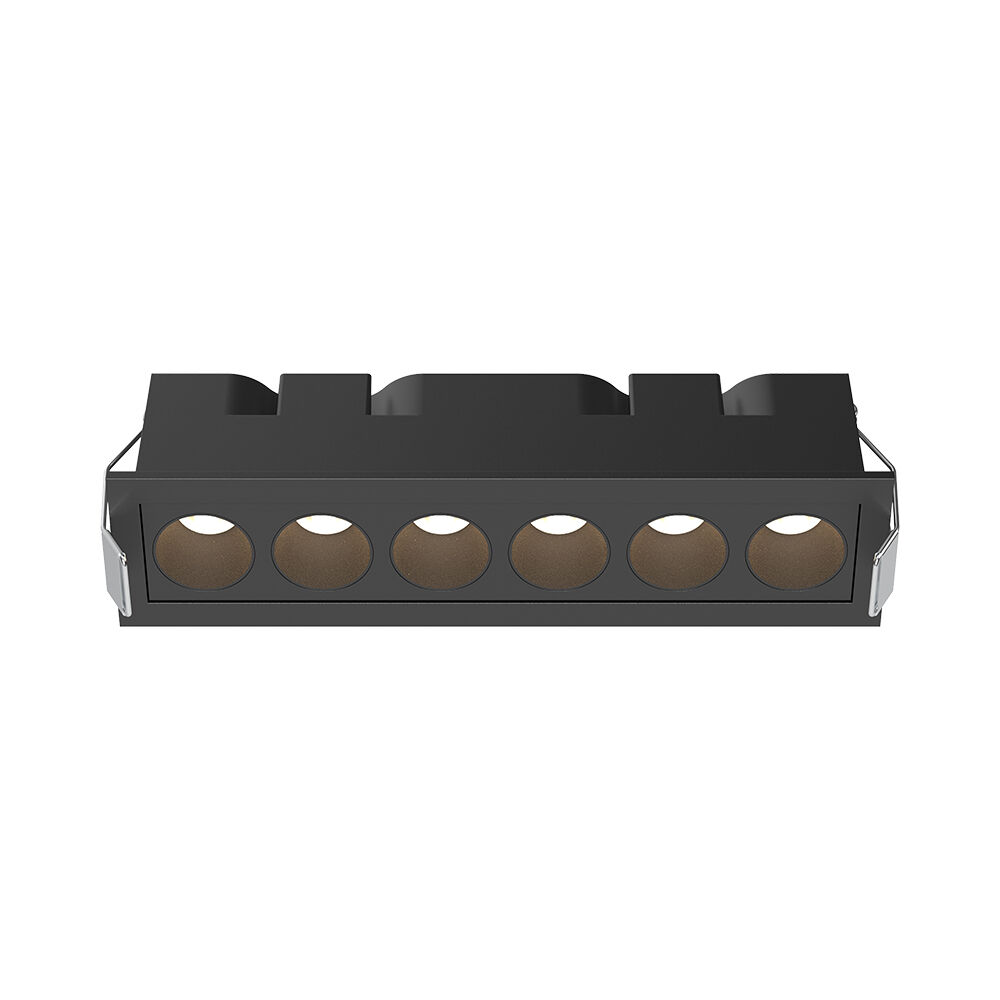

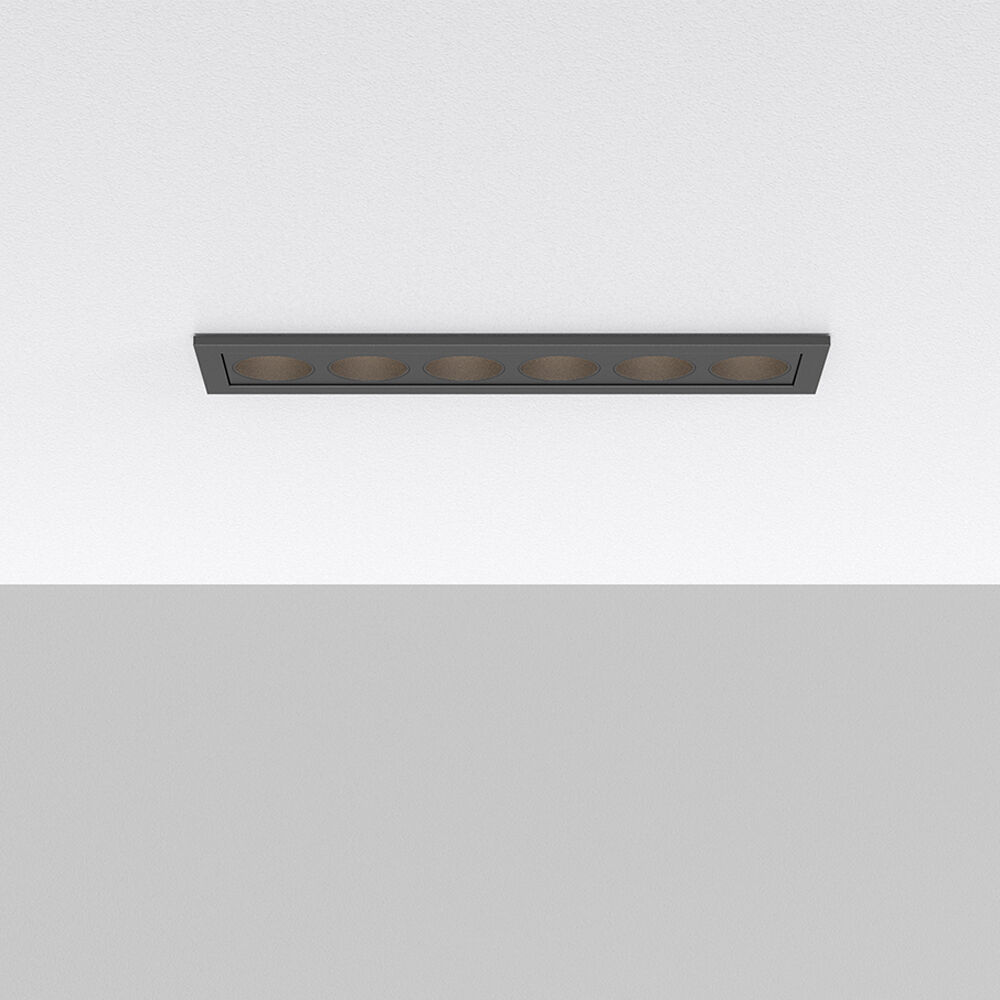

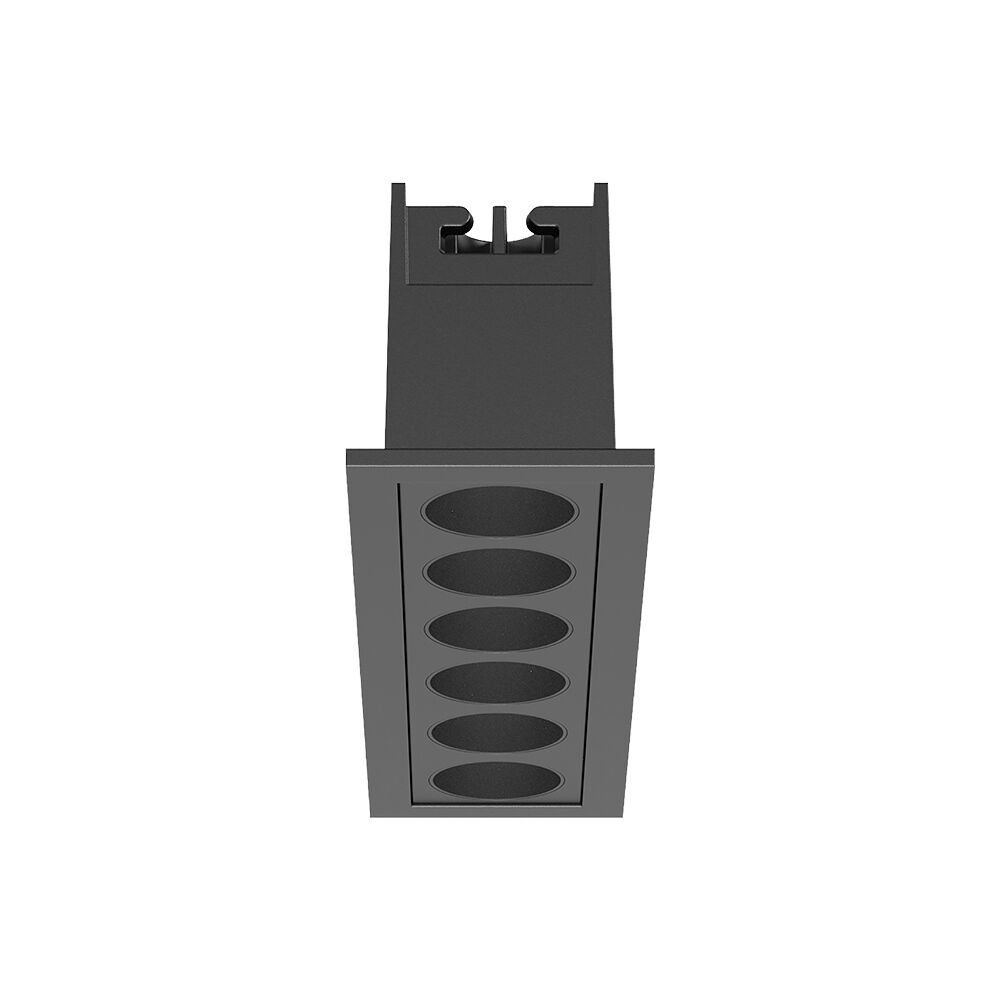

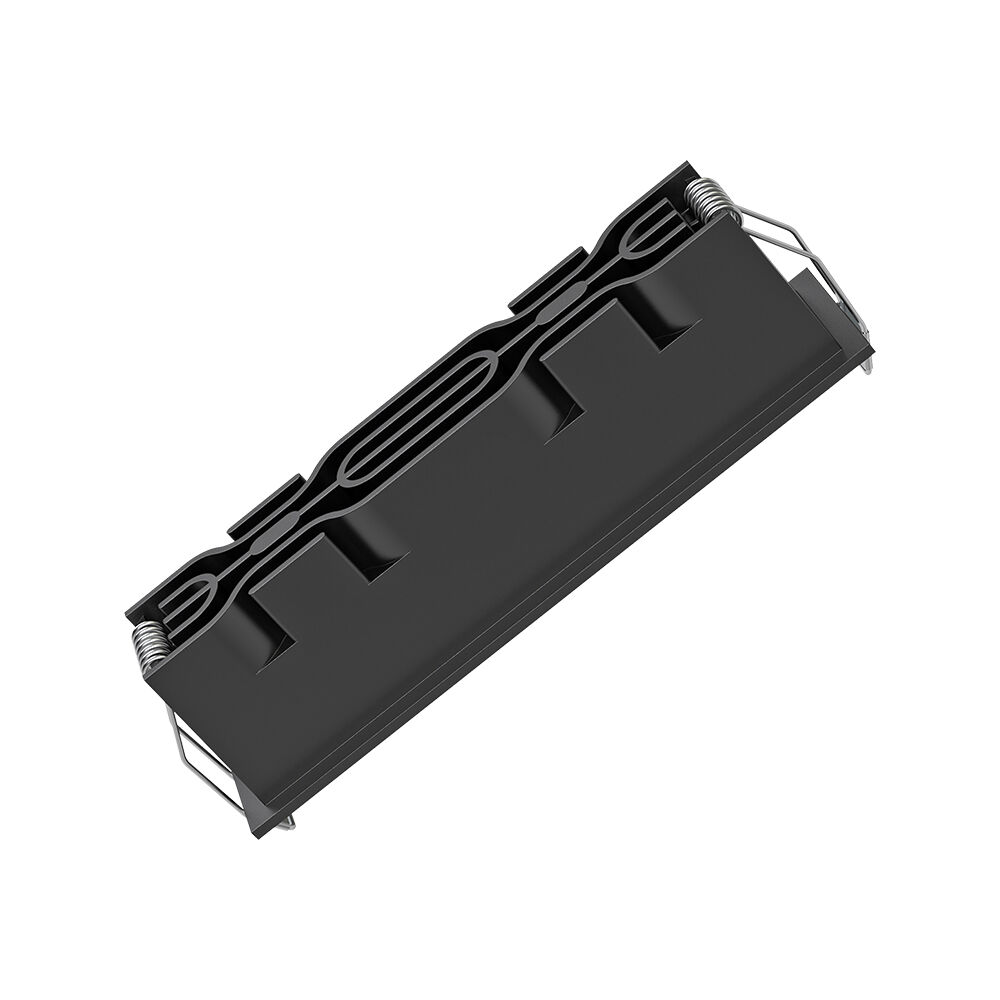

BRY-LINEX-LN6-9W-3CCT-BLC-LED LINEAR FIXTURE

BD63-00281

BRY-LINEX-LN6-9W-3CCT-BLC-LED LINEAR FIXTURE - 1

BRY-LINEX-LN6-9W-3CCT-BLC-LED LINEAR FIXTURE - 2

BRY-LINEX-LN6-9W-3CCT-BLC-LED LINEAR FIXTURE - 3

BRY-LINEX-LN6-9W-3CCT-BLC-LED LINEAR FIXTURE - 4

BRY-LINEX-LN6-9W-3CCT-BLC-LED LINEAR FIXTURE - 5

BRY-LINEX-LN6-9W-3CCT-BLC-LED LINEAR FIXTURE - 6

BRY-LINEX-LN6-9W-3CCT-BLC-LED LINEAR FIXTURE - 7

Family Products

General Characteristics

Model No

BD63-00281

Main Family

Indoor Lighting

Sub Family

Linear Spotlight

Type

Linear Fixture

Body Color

Black

Lamp Shape

Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

3 years

Class

Class II

IP

IP20

Product Characteristics

Wattage

9 w

Color Temperature

3IN1

Quse Lumen

650 lm

Color Rendering Index (CRI)

>90

Energy Efficiency Level

G

Beam Angle

24° Degrees

Color Category

3IN1

Electrical Characteristics

Lifetime (at 2.7 h/day)

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

Aluminium

Working Temperature

-20 C+40 C

Frequency

50-60 Hz

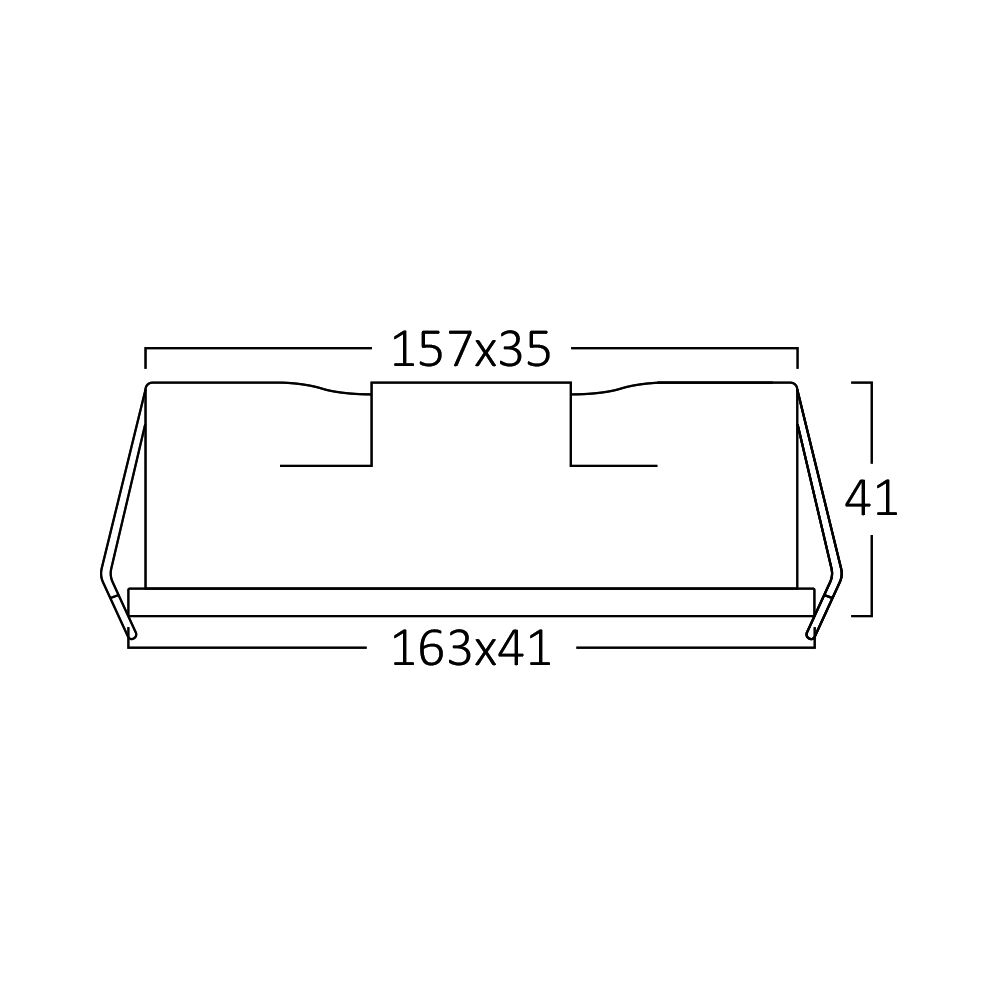

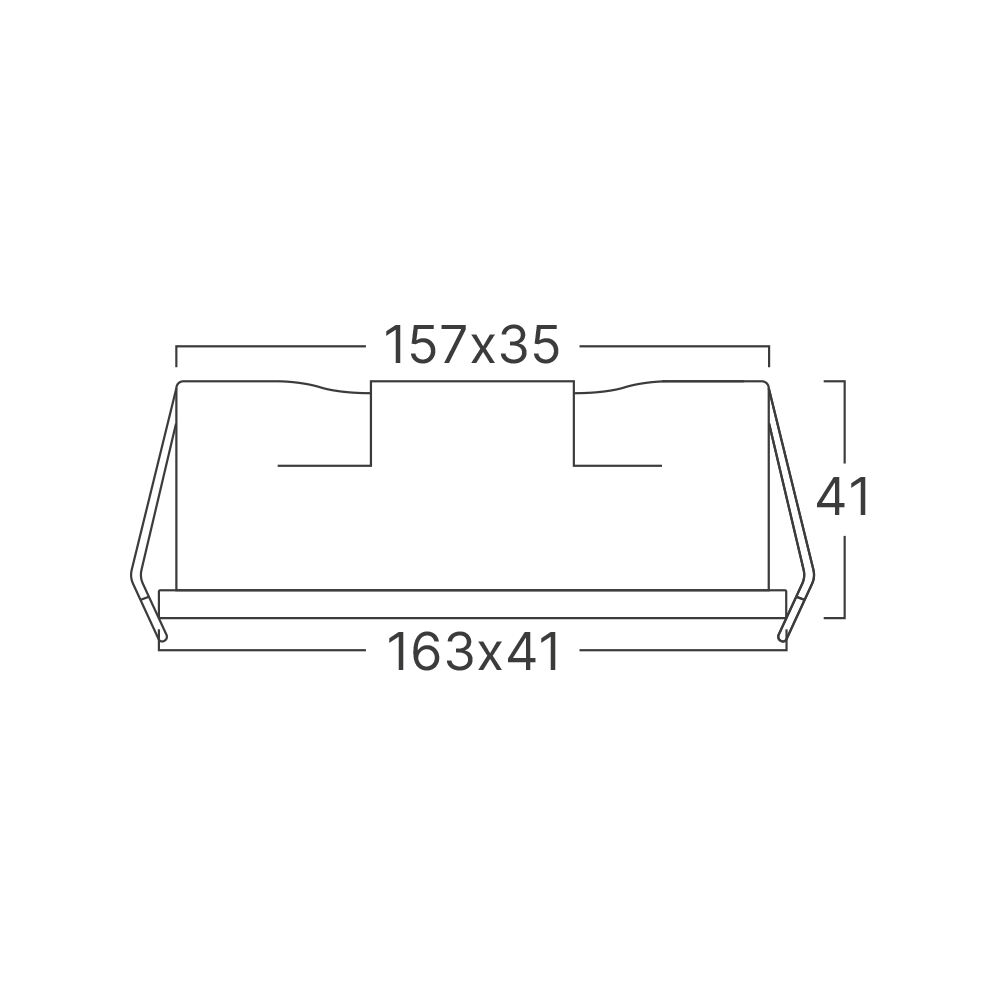

Dimensions & Weight

P. Length

163 mm

P. Width

41 mm

P. Height

41 mm

Cutout

157x35 mm

Weight

247 gr

Package Informations

N.W.

7,41 kgs

G.W.

8,80 kgs

PCS/CTN

30 pcs

Length

575 mm

Width

190 mm

Height

210 mm

EAN

5949097739019
