BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 1

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 2

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 3

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 4

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 5

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 6

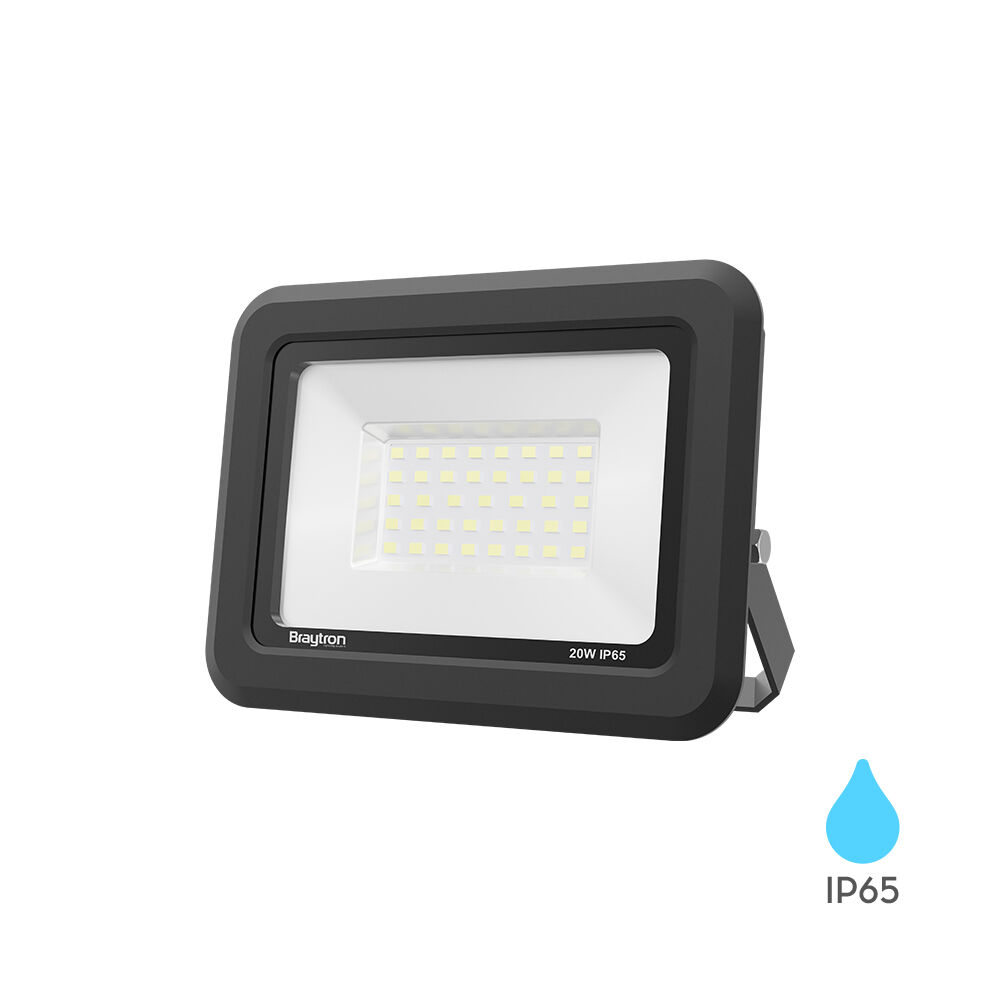

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT

BT60-32001

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 1

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 2

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 3

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 4

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 5

BRY-FLOOD-SF-20W-BLC-3000K-IP65-LED FLOODLIGHT - 6

Family Products

General Characteristics

Model No

BT60-32001

Main Family

Outdoor Lighting

Sub Family

LED Floodlight

Type

Flood

Body Color

Black

Lamp Shape

Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 years

Class

Class I

IP

IP65

IK

IK06

Product Characteristics

Wattage

20 w

Color Temperature

3000K

Quse Lumen

1620 lm

Color Rendering Index (CRI)

>70

Energy Efficiency Level

F

Beam Angle

120° Degrees

Color Category

Warm White

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,9

Material

Aluminium

Working Temperature

-20 C+40 C

Frequency

50-60 Hz

Dimensions & Weight

P. Length

128 mm

P. Width

26 mm

P. Height

103 mm

Weight

205 gr

Package Informations

N.W.

6,15 kgs

G.W.

7,50 kgs

PCS/CTN

30 pcs

Length

490 mm

Width

310 mm

Height

150 mm

EAN

5949097727221

3-CE-CERTIFICATE 3-EC-DECLERATION 3-EMC-TEST-EBO2104161-E3455 3-LVD-EST-EBO2104161-E346A

BT60-32001 DATASHEET
