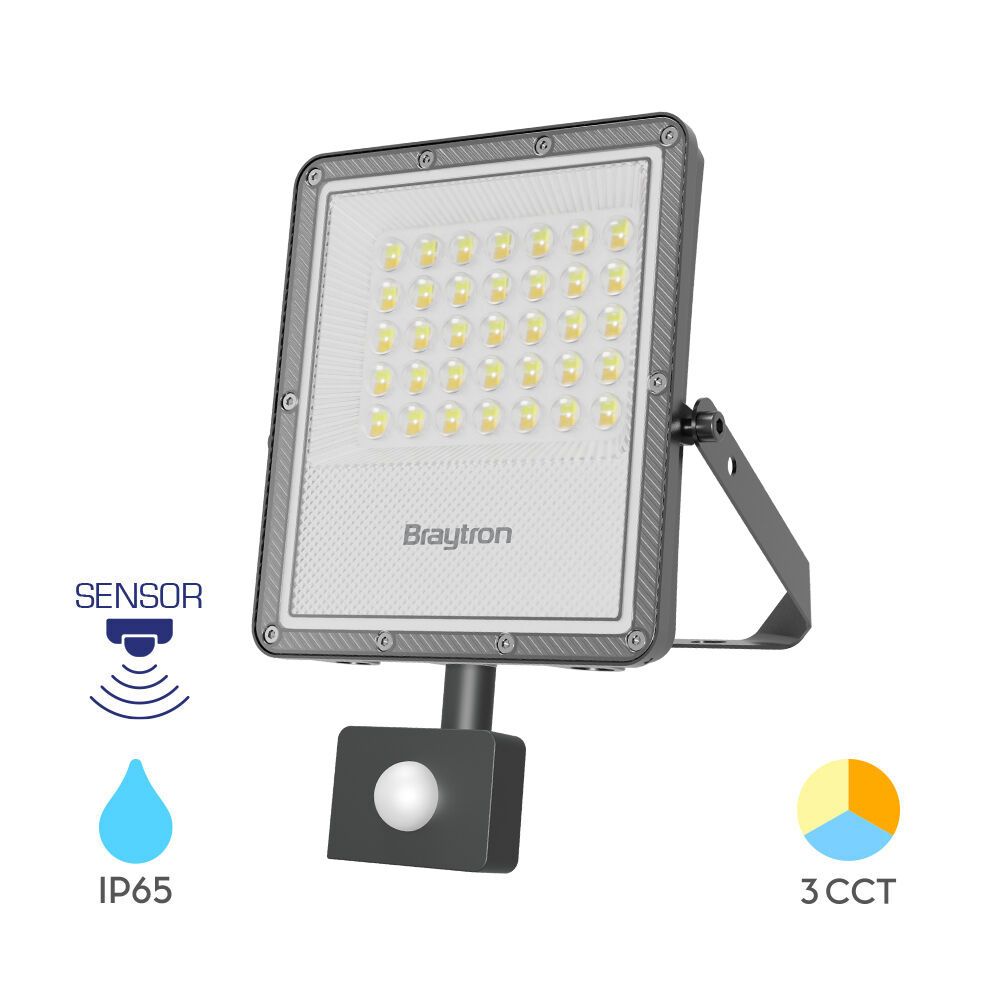

BRY-FLOOD-PF-30W-GRY-3IN1-SNS-IP65-LED FLOODLIGHT

BT65-23082

BRY-FLOOD-PF-30W-GRY-3IN1-SNS-IP65-LED FLOODLIGHT - 1

BRY-FLOOD-PF-30W-GRY-3IN1-SNS-IP65-LED FLOODLIGHT - 2

BRY-FLOOD-PF-30W-GRY-3IN1-SNS-IP65-LED FLOODLIGHT - 3

BRY-FLOOD-PF-30W-GRY-3IN1-SNS-IP65-LED FLOODLIGHT - 4

BRY-FLOOD-PF-30W-GRY-3IN1-SNS-IP65-LED FLOODLIGHT - 5

BRY-FLOOD-PF-30W-GRY-3IN1-SNS-IP65-LED FLOODLIGHT - 6

Family Products

General Characteristics

Model No

BT65-23082

Main Family

Outdoor Lighting

Sub Family

LED Floodlight

Type

Floodlight

Body Color

Grey

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Warranty

2 years

Class

Class I

IP

IP65

IK

IK06

Product Characteristics

Wattage

30 w

Color Temperature

3IN1

Quse Lumen

3300 lm

Color Rendering Index (CRI)

>80

Energy Efficiency Level

E

Beam Angle

90° Degrees

Color Category

3IN1

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,9

Material

Aluminium

Working Temperature

-20 C+40 C

Frequency

50-60 Hz

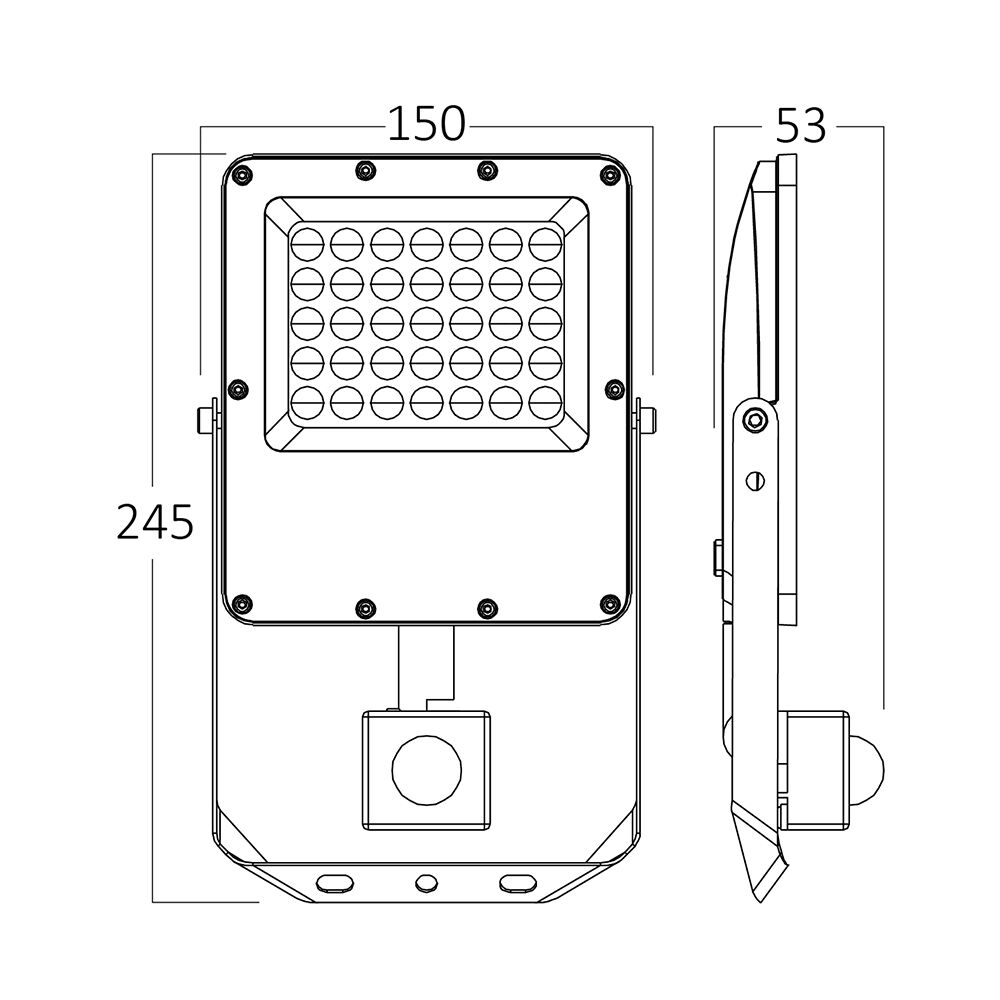

Dimensions & Weight

P. Length

245 mm

P. Width

53 mm

P. Height

150 mm

Weight

400 gr

Sensor Informations

Sensor Type

Motion

Detection Distance

4m-10m (adjustable) (<24C)

Detection Angle

120° Degrees

Detection Speed

0,6-1,5m/s

Installation Height

1,8m-2,5m

Time Delay

10sec-10min (adjustable)

Lux

10-2000 lux

Package Informations

N.W.

8,00 kgs

G.W.

10,10 kgs

PCS/CTN

20 pcs

Length

580 mm

Width

310 mm

Height

255 mm

EAN

5949097743252

BT65-23082 DATASHEET
