BRY-ECOLINE-12W-60L-5050-RGB-12V-IP20-LED STRIP

BS01-00309

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP20-LED STRIP - 1

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP20-LED STRIP - 2

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP20-LED STRIP - 3

BRY-ECOLINE-12W-60L-5050-RGB-12V-IP20-LED STRIP - 4

Family Products

General Characteristics

Model No

BS01-00309

Main Family

LED Strip

Sub Family

12V-24V LED Strip

Type

Strip

Body Color

White

Lamp Shape

N/A

Light Source

LED

Warranty

2 years

Class

Class III

IP

IP20

Lamp Characteristics

Wattage

12 w/mt

Color Temperature

RGB

Color Category

RGB

Electrical Characteristics

Lifetime (at 2.7 h/day)

20000 h

Voltage

12VDC

Material

FPCB

Working Temperature

-20 C+40 C

Lamp Dimensions & Weight

P. Length

1000 mm

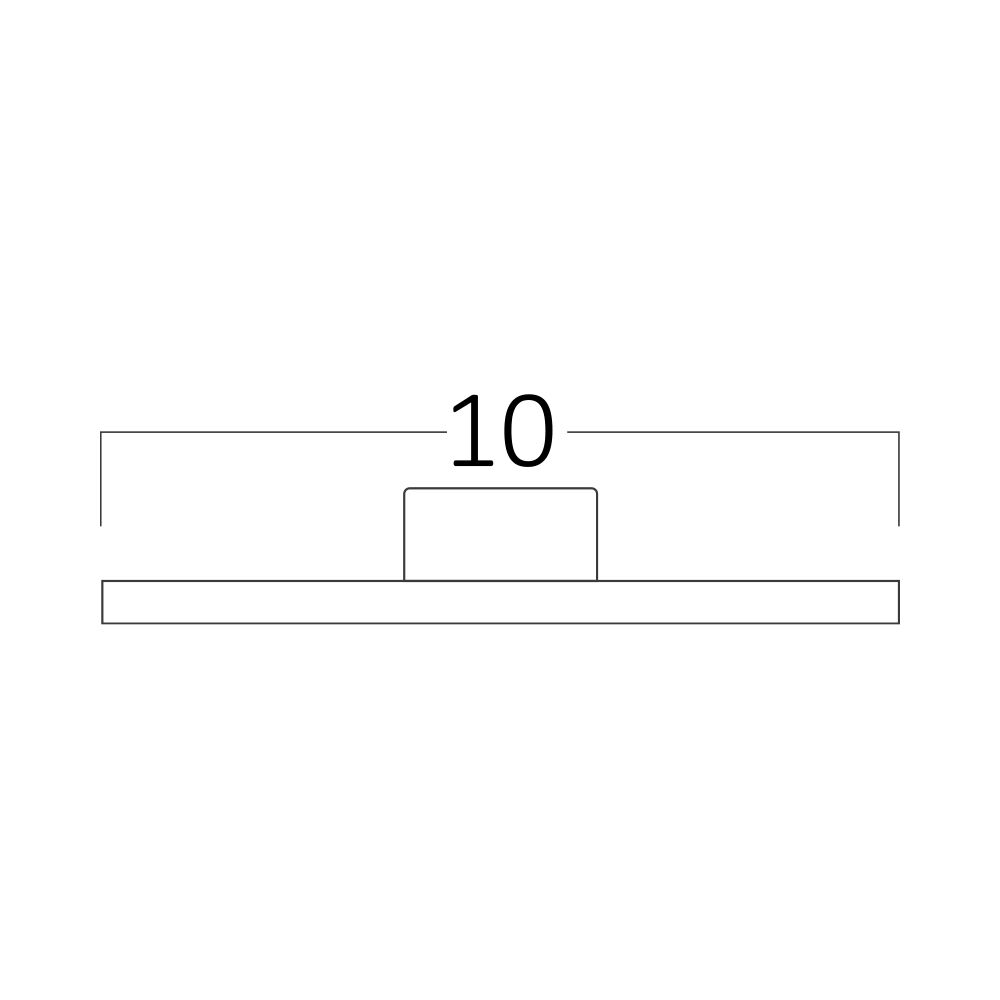

P. Width

10 mm

Weight

14 gr

Package Informations

N.W.

3,50 kgs

G.W.

4,20 kgs

PCS/CTN

250 mt

Length

340 mm

Width

320 mm

Height

175 mm

EAN

5949097705496

BS01-00309 DATASHEET
