BRY-BULKHEAD-18W-RND-BLC-SNS-3IN1-IP65-LED BULKHEA

BC18-30781

BRY-BULKHEAD-18W-RND-BLC-SNS-3IN1-IP65-LED BULKHEA - 1

BRY-BULKHEAD-18W-RND-BLC-SNS-3IN1-IP65-LED BULKHEA - 2

BRY-BULKHEAD-18W-RND-BLC-SNS-3IN1-IP65-LED BULKHEA - 3

BRY-BULKHEAD-18W-RND-BLC-SNS-3IN1-IP65-LED BULKHEA - 4

BRY-BULKHEAD-18W-RND-BLC-SNS-3IN1-IP65-LED BULKHEA - 5

BRY-BULKHEAD-18W-RND-BLC-SNS-3IN1-IP65-LED BULKHEA - 6

Family Products

General Characteristics

Model No

BC18-30781

Main Family

Outdoor Lighting

Sub Family

LED Bulkhead

Type

BULKHEAD

Body Color

Black

Lamp Shape

Non-Directional

Dimmable

Not-Dimmable

Light Source

LED

Socket

N/A

Warranty

2 years

Class

Class II

IP

IP65

IK

IK06

Product Characteristics

Wattage

18 w

Color Temperature

3IN1

Quse Lumen

2020 lm

Color Rendering Index (CRI)

>80

Energy Efficiency Level

E

Beam Angle

120° Degrees

Color Category

3IN1

Electrical Characteristics

Lifetime

20000 h

Voltage

220-240V

Power Factor

>0,5

Material

PC

Working Temperature

-20 C+40 C

Frequency

50-60 Hz

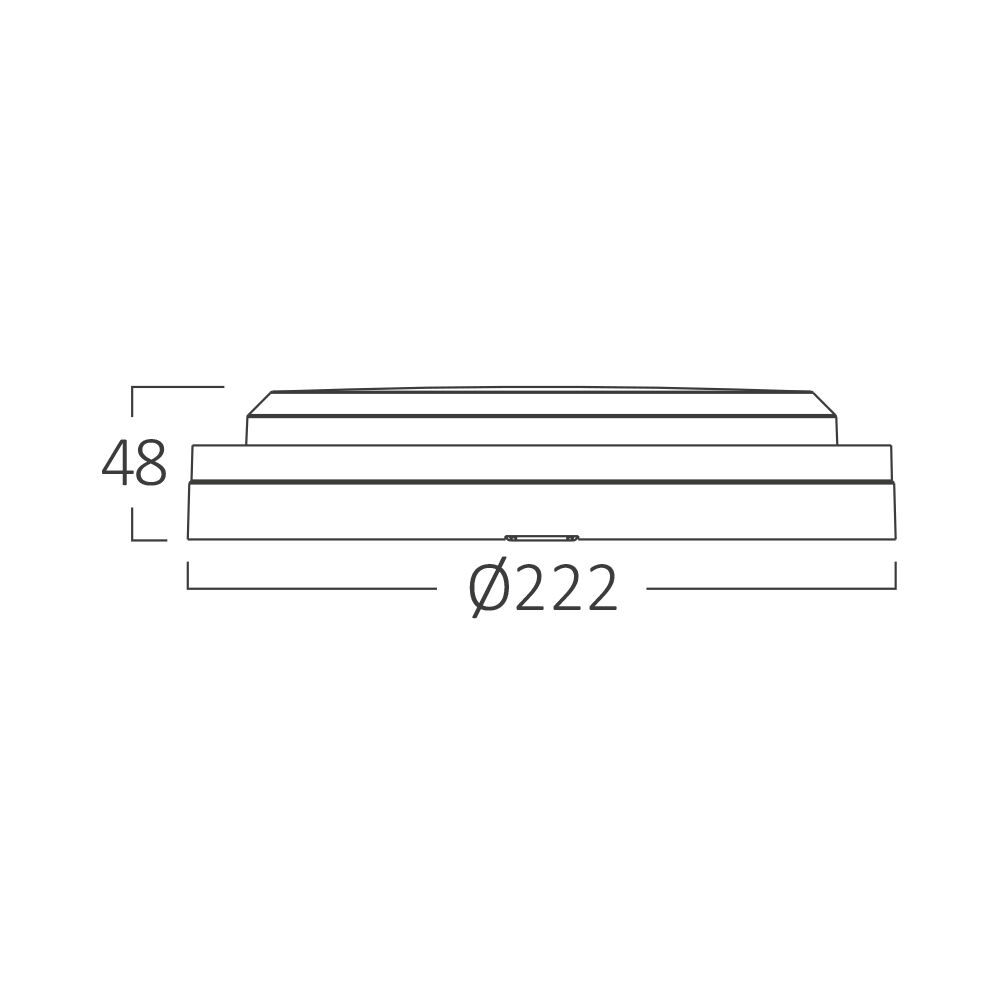

Dimensions & Weight

Diameter

222 mm

P. Height

48 mm

Weight

340 gr

Sensor Informations

Sensor Type

Microwave

Detection Distance

6 m

Detection Angle

180° Degrees

Installation Height

3m-4m

Time Delay

120sec

Lux

<15 lux

Package Informations

N.W.

3,40 kgs

G.W.

4,80 kgs

PCS/CTN

10 pcs

Length

540 mm

Width

250 mm

Height

250 mm

EAN

5949097741890

BC18-30781 DATASHEET
